Polarity Server v5 - Administrator's Overview

Server Requirements

We recommend the following server specs for a deployment of up to approximately 50 users:

• 4 Cores

• 32 GB of RAM

• 250 GB storage

  • ensure whichever volume contains /var has enough storage for containers

Deployment Methods

1. Amazon Machine Image (AMI)

   1. Amazon Linux 2023

2. Single server container deployment

   1. Supported Operating Systems:

      1. Debian-Based Distros, such as:

         1. Debian 11 / 12

         2. Ubuntu 22.04 LTS / 24.04 LTS

      2. Enterprise Linux-Based Distros, such as:

         1. Red Hat Enterprise Linux 8 / 9

         2. Rocky Linux 8 / 9

         3. Oracle Linux 8 / 9

         4. Amazon Linux 2023

3. Single server container deployment - separating out Redis and Postgres to different servers

   1. Typically, this will be done in AWS using Elasticache and RDS

Polarity Architecture

The diagram below shows the Polarity Server v5 architecture.  Note that the “Polarity Platform” block in this diagram contains five services:  Polarity Platform, Polarity Web, PostgreSQL, and two Redis caches.

Polarity Data Flow

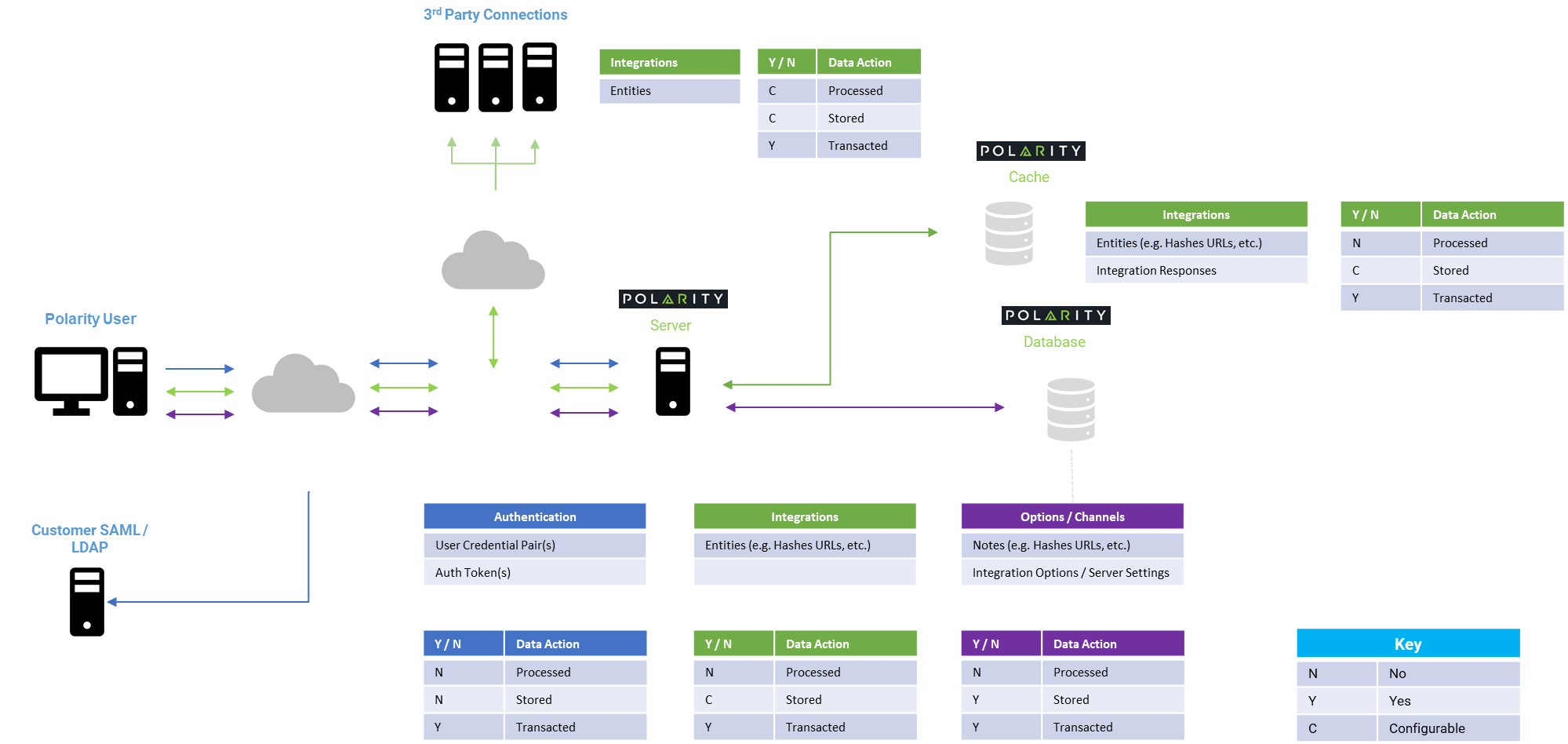

The diagram below is a rough overview of the data flow in a Polarity ecosystem.

Installation Options for Polarity Server v5

1. Fresh Install (preferred)

2. Upgrade from Polarity Server v4
